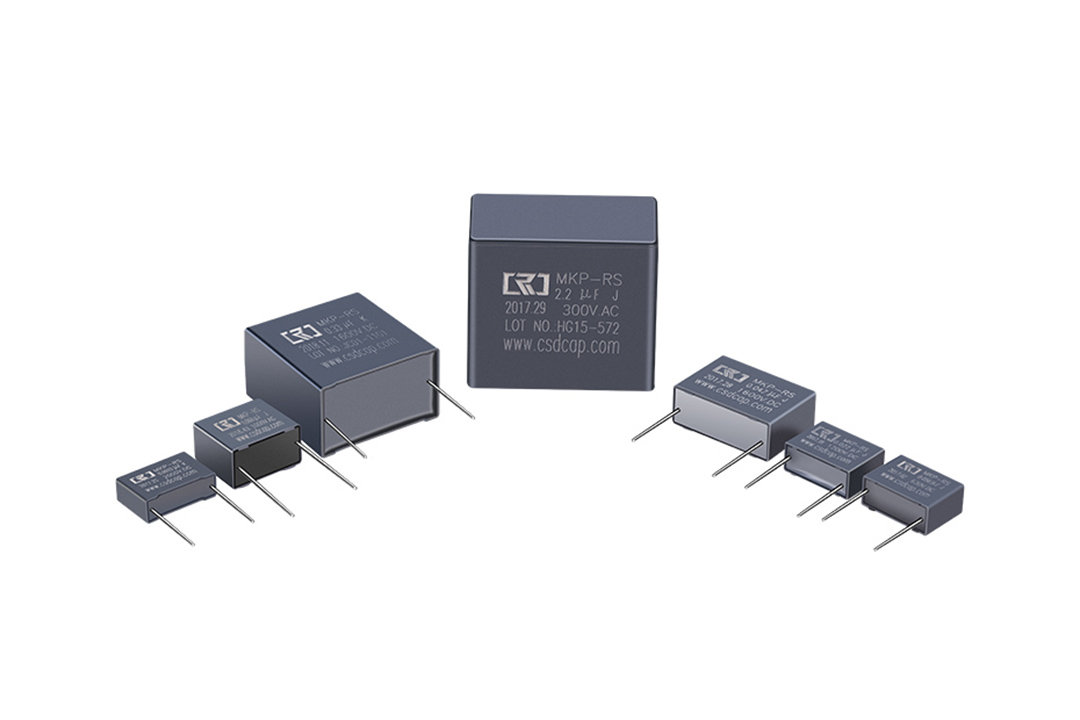

MKP-RS Resonant Capacitors

Widely used in power electronic equipment to absorb peak voltage and peak current when switching devices are turned off.

Model	GB/T 17702-2013	IEC61071-2017
	630~3000V.DC	-40~105℃
	0.001~5uF
Features	High withstanding voltage capability, low dissipation.
	High pulse current capability，high dv/dt strengh.
Applications	Widely used in series / parallel circuits and snubber circuits.

Product Feature

1. Plastic shell encapsulation, flame retardant epoxy resin infusion;

2. Tinned copper wire leads out, small size, simple and convenient installation;

3. High voltage resistance, small loss (tgδ) and low temperature rise;

4. Small self-inductance (ESL) and small equivalent series resistance (ESR);

5. High pulse current, high dv/dt endurance.
