The encapsulated metallized polypropylene capacitor complies with GB/T 10191/14579 (IEC 60384-16/17) standards. It features a capacitance range from 0.001uF to 20.0uF and voltage ratings of 100V, 250V, 400V, 630V, and 1000V. With a non-inductive winding structure, this capacitor offers excellent electrical performance, low high-frequency loss, and minimal internal temperature rise. It is encapsulated in flame-retardant epoxy powder (UL94/V0), ensuring robust protection and reliability.
|
Model |
GB/T 7332 (IEC 60384-2) | 0.001~10uF |
| 100/160/250/450/630/1000/1250V | ||
|
Features |
Metallized polypropylene film, non-inductive wound construction. | |
| Wide capacitance range, compact size, and light weight. | ||
| Good self-healing properties, long life. | ||
| Flame retardant plastic case and epoxy resin sealing (UL94/V0). | ||
|
Applications |
Used in DC impulse and pulse circuits. | |
| Used in SMPS converter, electronic ballasts, compact flourescent lamps. | ||
| Used in by-passing, blocking, coupling, decoupling, logic,timing and oscillator circuits. | ||
The non-inductive design minimizes inductive reactance, ensuring excellent performance in high-frequency applications. This feature is crucial for maintaining efficiency and reducing energy losses in circuits.
The capacitor exhibits low high-frequency loss and minimal internal temperature rise, making it suitable for applications where thermal management and energy efficiency are paramount.
Encapsulated in flame-retardant epoxy powder (UL94/V0), the capacitor offers enhanced safety and protection against environmental factors like moisture and dust. This robust encapsulation ensures long-term durability and reliability.
Made with metallized polypropylene film, the capacitor features self-healing properties that allow it to recover from dielectric breakdowns. This self-healing capability extends the capacitor’s lifespan and maintains consistent performance over time.
Supporting a wide range of voltage ratings, this capacitor is versatile enough to be used in various applications, from low-voltage electronic circuits to high-voltage power systems.
This capacitor is ideal for use in power electronics, DC-link circuits, and industrial applications where stable and reliable performance is critical. It is also suitable for high-frequency filtering, harmonic filtering in power systems, and as a key component in reactive power compensation systems. Its robust design makes it an excellent choice for harsh industrial environments, offering reliable performance in motor drives, power supplies, and inverter circuits.
The encapsulated metallized polypropylene capacitor is a highly reliable and efficient component, suitable for a broad range of applications. Its excellent electrical characteristics, robust construction, and compliance with international standards make it a preferred choice for engineers and designers in various industries.

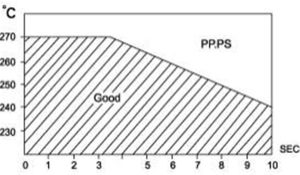

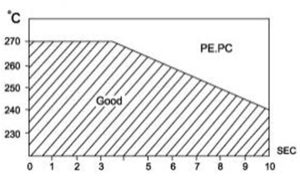

Capacity change rate vs. Temperature
|
Loss angle tangent vs. Temperature
|
Operating voltage vs. Temperature
|
Insulation resistance vs. Temperature
|

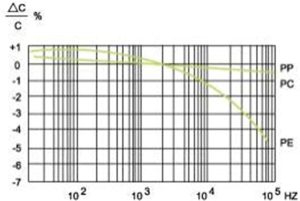

Capacity rate of change vs. Frequency
|

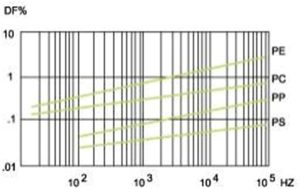

Loss Angle Tangent vs. Frequency
|
